Meiblue® Dos Cl 2 Deluxe

Microprocessor-controlled measuring, dosing and control unit to control pH values and chlorine content using redox potential with Intelligent Dosing System (IDS).

Measuring Range:
pH: 0 - 14, Redox 0 - 1000 mV
Display of the pool water temperature.
Control Characteristics:
proportional, pH+ or pH- interchangeable (PID), Redox (PID)
Safety Components:
Start-up time delay: 0 - 15 minutes
Adjustable dosage time limitation: 0 - 240 minutes
Shutdown of the dosing pumps when chemical tanks are empty

Features the INTELLIGENT DOSING SYSTEM: Automatic adjustment of dosing time limits to prevent the device from shutting down prematurely for safety reasons in most cases.

Use:
Intuition-based prompt menu with LC-display, 4 buttons, simple and user-friendly

Dosing Pumps:
Peristaltic dosing pumps 1,6 l/h, practically silent and resistant because of spring-supported rollers, optionally with 2.4 l/h pumps

Scope of Delivery:

• Measuring, control and dosing unit DOS CL2 Deluxe

• Temperature sensor

• pH- and Rx-probe with cable and plug SN6

• Buffer solutions pH 4, pH 7 and Rx 475 mV

• Probe housing (flow cell), hose connection nipples, 10 m test water tube and 2 closing valves

• Peristaltic pumps 1.6 l/h, 2 bar max., for pH and disinfectant, injection valve (VITON) and dosage tube PTFE

• 2 Safety cans for chemical tanks 25 l / 30 l

• 2 Suction lances with level sensor (empty chemical tank)

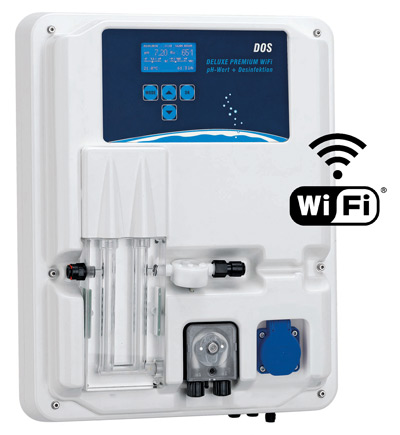

Meiblue® Dos Cl 2 Deluxe Wifi

Microprocessor-controlled measuring, dosing and control unit to control pH values and chlorine content using redox potential with Intelligent Dosing System (IDS).

• Wifi module

• XL-display: Display of all relevant parameters:
  - Currently measured water parameters
  - Through-flow volume of the measured water in l/h
  - Current pump performance in %
  - Display of all alarm states
  - Dosing direction

Measuring Range:
pH: 0 - 14, Redox 0 - 1000 mV
Display of the pool water temperature.

Control Characteristics:
proportional, pH+ or pH- interchangeable (PID), Redox (PID)

Safety Components:
Start-up time delay: 0 - 15 minutes
Adjustable dosage time limitation: 0 - 240 minutes
Shutdown of the dosing pumps when chemical tanks are empty

Features the INTELLIGENT DOSING SYSTEM: Automatic adjustment of dosing time limits to prevent the device from shutting down prematurely for safety reasons in most cases.

Use:
Intuition-based prompt menu with LC-display, 4 buttons, simple and user-friendly

Dosing Pumps:
Peristaltic dosing pumps 1,6 l/h, practically silent and resistant because of spring-supported rollers, optionally with 2.4 l/h pumps

Scope of Delivery:

• Measuring, control and dosing unit DOS CL2 Deluxe Wifi

• Temperature sensor

• Through-flow volume control

• pH- and Rx-probe with cable and plug SN6

• Buffer solutions pH 4, pH 7 and Rx 475 mV

• Through-flow cell made from acrylic with hose connection nipples, 10 m test water tube and 2 closing valves

• Peristaltic pumps 1.6 l/h, 2 bar max., for pH and disinfectant, injection valve (VITON) and dosage tube PTFE

• 2 Safety cans for chemical tanks 25 l / 30 l

• 2 Suction lances with level sensor (empty chemical tank)

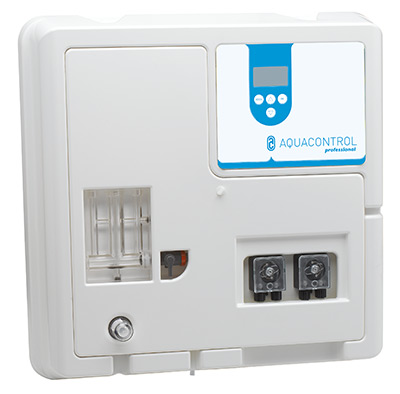

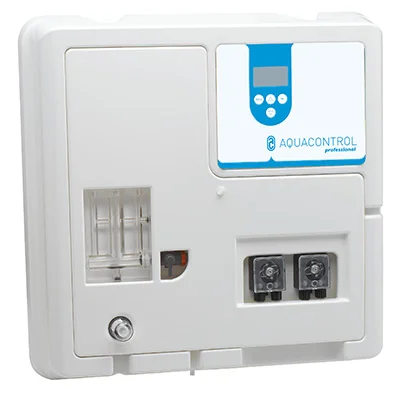

Meiblue® Professional pH / Free Chlorine

Microprocessor-controlled 2-channel measuring, dosing and control unit to control the pH value and the concentration of free chlorine.

Measuring Range:
pH 0 - 14, free Chlorine 0 - 2,0 ppm or 0 - 10 ppm.
Display of pol water temperature.

Control Characteristics:
pH + oder pH - (PID), Chlor (PID)

Safety Components:
Start-up time delay: 0 - 15 minutes
Adjustable dosage time limitation: 0 - 240 minutes
Shutdown of the dosing pumps when chemical tanks are empty

Use:
Intuition-based prompt menu with LC-display, 6 buttons, simple and user-friendly, LED Display of the operating state

Calibration:
2-point calibration for pH and electrode slope adjustment for chlorine

Dosing Pumps:
Peristaltic dosing pumps 1,6 l/h, practically silent and resistant because of spring-supported rollers, optionally with 2.4 l/h pumps

Scope of Delivery:

• Measuring, control and dosing unit Professional pH/free chlorine

• Temperature sensor

• pH-probe with cable and plug SN6

• Buffer solutions pH 4 and pH 7

• Free chlorine measuring membrane-covered, amperometric sensor with cable, electrolyte and assembly set

• Through-flow cell made from acrylic with hose connection nipples, 10 m test water tube and 2 closing valves

• Peristaltic pumps 1.6 l/h, 2 bar max., for pH and disinfectant, injection valve (VITON) and dosage tube PTFE

• Flow control for test water

• Prefilter

• Sampling point for test water

• 2 Safety cans for chemical tanks 25 l / 30 l

• 2 Suction lances with level sensor (empty chemical tank)

Meiblue® Professional pH / RX / Chlorine

Equipped with additional function: control of redox potential

Microprocessor-controlled 3-channel measuring, control and dosing unit as per DIN 19643 to measure the pH value, redox potential and the concentration of free chlorine.

Measuring Range:
pH 0 - 14, Redox 0 - 1000 mV, free Chlorine 0 - 2,0 ppm or 0 - 10 ppm.
Display of pol water temperature.

Control Characteristics:
pH + oder pH - (PID), Chlor (PID). Redox: measurement and display with blockage of chlorine dosing.

Safety Components:
Start-up time delay: 0 - 15 minutes
Adjustable dosage time limitation: 0 - 240 minutes
Shutdown of the dosing pumps when chemical tanks are empty

Use:
Intuition-based prompt menu with LC-display, 6 buttons, simple and user-friendly, LED Display of the operating state

Calibration:
2-point calibration for pH and electrode slope adjustment for chlorine

Dosing Pumps:
Peristaltic dosing pumps 1,6 l/h, practically silent and resistant because of spring-supported rollers, optionally with 2.4 l/h pumps

Scope of Delivery:

• Measuring, control and dosing unit Professional pH/Rx/free chlorine, according to DIN 19643

• Temperature sensor

• pH- and Rx-probe with cable and plug SN6

• Buffer solutions pH 4, pH 7 and Rx 475 mV

• Free chlorine measuring membrane-covered, amperometric sensor with cable, electrolyte and assembly set

• Through-flow cell made from acrylic with hose connection nipples, 10 m test water tube and 2 closing valves

• Peristaltic pumps 1.6 l/h, 2 bar max., for pH and disinfectant, injection valve (VITON) and dosage tube PTFE

• Flow control for test water

• Prefilter

• Sampling point for test water

• 2 Safety cans for chemical tanks 25 l / 30 l

• 2 Suction lances with level sensor (empty chemical tank)

Meiblue® Dos SL 3 Deluxe

Microprocessor-controlled measuring, dosing and control unit to control the pH value and the dosing of active oxygen depending on the time and the temperature, with Intelligent Dosing System (IDS).

Measuring Rage:
pH: 0 - 14, Dosing time for active oxygen will be automatically calculated depending on poolwater temperature and pool size. Display of pool water temperature.

Control Characteristics:
pH+ or pH- interchangeable (PID) and dosing of active oxygen
(daily 7 ml/m3 at 25°).

Safety Components:
Start-up time delay: 0 - 15 minutes
Adjustable dosage time limitation: 0 - 240 minutes
Shutdown of the dosing pumps when chemical tanks are empty

Features the INTELLIGENT DOSING SYSTEM: Automatic adjustment of dosing time limits to prevent the device from shutting down prematurely for safety reasons in most cases.

Use:
Intuition-based prompt menu with LC-display, 4 buttons, simple and user-friendly

Dosing Pumps:
Peristaltic dosing pumps 1,6 l/h, practically silent and resistant because of spring-supported rollers, optionally with 2.4 l/h pumps

Scope of Delivery:

• Measuring, control and dosing unit DOS SL3 Deluxe Oxygen

• Temperature sensor

• pH-probe with cable and plug SN6

• Buffer solutions pH 4 and pH 7

• Probe housing (flow cell), hose connection nipples,
  10 m test water tube and 2 closing valves

• Peristaltic pumps 1.6 l/h, 2 bar max., for pH and disinfectant, injection valve (VITON) and dosage tube PTFE

• 2 Safety cans for chemical tanks 25 l / 30 l

• 2 Suction lances with level sensor (empty chemical tank)

Meiblue® Dos SL 3 Deluxe Wifi

Microprocessor-controlled measuring, dosing and control unit to control the pH value and the dosing of active oxygen depending on the time and the temperature, with Intelligent Dosing System (IDS).

• Wifi module

• XL-display: Display of all relevant parameters:
  - Currently measured water parameters
  - Through-flow volume of the measured water in l/h
  - Current pump performance in %
  - Display of all alarm states
  - Dosing direction

Measuring Rage:
pH: 0 - 14, Dosing time for active oxygen will be automatically calculated depending on poolwater temperature and pool size. Display of pool water temperature.

Control Characteristics:
pH+ or pH- interchangeable (PID) and dosing of active oxygen
(daily 7 ml/m3 at 25°).

Safety Components:
Start-up time delay: 0 - 15 minutes
Adjustable dosage time limitation: 0 - 240 minutes
Shutdown of the dosing pumps when chemical tanks are empty

Features the INTELLIGENT DOSING SYSTEM: Automatic adjustment of dosing time limits to prevent the device from shutting down prematurely for safety reasons in most cases.

Use:
Intuition-based prompt menu with LC-display, 4 buttons, simple and user-friendly

Dosing Pumps:
Peristaltic dosing pumps 1,6 l/h, practically silent and resistant because of spring-supported rollers, optionally with 2.4 l/h pumps

Scope of Delivery:

• Measuring, control and dosing unit DOS SL3 Deluxe Wifi

• Temperature sensor

• Through-flow volume control

• pH-probe with cable and plug SN6

• Buffer solutions pH 4 and pH 7

• Through-flow cell made from acrylic with hose connection nipples, 10 m test water tube and 2 closing valves

• Peristaltic pumps 1.6 l/h, 2 bar max., for pH and disinfectant, injection valve (VITON) and dosage tube PTFE

• 2 Safety cans for chemical tanks 25 l / 30 l

• 2 Suction lances with level sensor (empty chemical tank)

Meiblue® Professional pH / Free Chlorine / RX

Microprocessor-controlled 3-channel measuring, control and dosing unit as per DIN 19643 to measure the pH value, redox potential and the concentration of free chlorine.

Measuring Range:
pH 0 - 14, Redox 0 - 1000 mV, free Chlorine 0 - 2,0 ppm or 0 - 10 ppm.
Display of pol water temperature.

Control Characteristics:
pH + oder pH - (PID), Chlor (PID). Redox: measurement and display with blockage of chlorine dosing.

Safety Components:
Start-up time delay: 0 - 15 minutes
Adjustable dosage time limitation: 0 - 240 minutes
Shutdown of the dosing pumps when chemical tanks are empty

Use:
Intuition-based prompt menu with LC-display, 6 buttons, simple and user-friendly, LED Display of the operating state

Calibration:
2-point calibration for pH and electrode slope adjustment for chlorine

Dosing Pumps:
Peristaltic dosing pumps 1,6 l/h, practically silent and resistant because of spring-supported rollers, optionally with 2.4 l/h pumps

Scope of Delivery:

• Measuring, control and dosing unit Professional pH/Rx/free chlorine, according to DIN 19643

• Temperature sensor

• pH- and Rx-probe with cable and plug SN6

• Buffer solutions pH 4, pH 7 and Rx 475 mV

• Free chlorine measuring membrane-covered, amperometric sensor with cable, electrolyte and assembly set

• Through-flow cell made from acrylic with hose connection nipples, 10 m test water tube and 2 closing valves

• Peristaltic pumps 1.6 l/h, 2 bar max., for pH and disinfectant, injection valve (VITON) and dosage tube PTFE

• Flow control for test water

• Prefilter

• Sampling point for test water

• 2 Safety cans for chemical tanks 25 l / 30 l

• 2 Suction lances with level sensor (empty chemical tank)

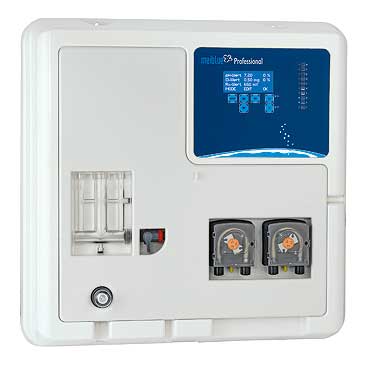

Meiblue® Professional With Maxi Pumps

Microprocessor-controlled 3-channel measuring, control and dosing unit as per DIN 19643 to measure the pH value, redox potential and the concentration of free chlorine.

Measuring Range:
pH 0 - 14, Redox 0 - 1000 mV, free Chlorine 0 - 2,0 ppm or 0 - 10 ppm.
Display of pol water temperature.

Control Characteristics:
pH + oder pH - (PID), Chlor (PID). Redox: measurement and display with blockage of chlorine dosing.

Safety Components:
Start-up time delay: 0 - 15 minutes
Adjustable dosage time limitation: 0 - 240 minutes
Shutdown of the dosing pumps when chemical tanks are empty

Use:
Intuition-based prompt menu with LC-display, 6 buttons, simple and user-friendly, LED Display of the operating state

Calibration:
2-point calibration for pH and electrode slope adjustment for chlorine

Dosing Pumps:
adjustable peristaltic dosing pumps 3/6/9/12 l/h, practically silent and resistant because of spring-supported rollers

Scope of Delivery:

• Measuring, control and dosing unit Professional pH/Rx/free chlorine, according to DIN 19643

• Temperature sensor

• pH- and Rx-probe with cable and plug SN6

• Buffer solutions pH 4, pH 7 and Rx 475 mV

• Free chlorine measuring membrane-covered, amperometric sensor with cable, electrolyte and assembly set

• Through-flow cell made from acrylic with hose connection nipples, 10 m test water tube and 2 closing valves

• Peristaltic pumps adjustable 3/6/9/12 l/h, 2 bar max., for pH and disinfectant, injection valve (VITON) and dosage tube PTFE

• Flow control for test water

• Prefilter

• Sampling point for test water

• 2 Safety cans for chemical tanks 25 l / 30 l

• 2 Suction lances with level sensor (empty chemical tank)

Meiblue® Dos Basic

Dosing station for an even and continous dosing of flocculation agent.

 Dosing Performance

• 8 ml – 80 ml per hour (10%-100%)

• Can be set to any value required

• Operation: On/Off button

• Display for "Operation" and "Container empty"


Scope of Delivery

• DOS BASIC flocculation

• Hose dosing pump, maximum 80 ml/h can be set to any value

• Suction foot for removal of container

• Injection valve (VITON) and dosing line PVC

Meiblue® Basic Exact S

Microprocessor-controlled measuring, dosing and control unit to control pH values and chlorine content using redox potential.

Measuring Range:
pH: 0 - 14, Redox 0 - 1000 mV.

Control Characteristics:
Proportional, pH+ or pH- interchangeable (PID), 2 point control for disinfection

Safety Components:
Start-up time delay: 8 minutes
Adjustable dosage time limitation for pH: 0 - 240 minutes
Shutdown of the dosing pumps when chemical tanks are empty (optional)

Use:
Intuition-based prompt menu with LC-display, 3 buttons, simple and user-friendly

Dosing Pump:
Peristaltic dosing pump 1,6 l/h, practically silent and resistant because of spring-supported rollers, optionally with 2.4 l/h pump

Scope of Delivery:

• Measuring, control and dosing unit DOS Basic Exact S

• pH- and Rx-probe with cable and plug SN6

• Buffer solutions pH 4, pH 7 and Rx 475 mV

• Probe housing (flow cell), hose connection nipples, 10 m test water tube and 2 closing valves

• Peristaltic pump 1.6 l/h, 2 bar max., for pH, injection valve (VITON) and dosage tube PTFE

• Socket for connecting the Chlorinator

Meiblue® pH / RX Deluxe S

Microprocessor-controlled measuring, dosing and control unit to control pH values and chlorine content using redox potential with Intelligent Dosing System (IDS).

Measuring Range:
pH: 0 - 14, Redox 0 - 1000 mV
Display of the pool water temperature.

Control Characteristics:
Proportional, pH+ or pH- interchangeable (PID), 2 point control for disinfection

Safety Components:
Start-up time delay: 0 - 15 minutes
Adjustable dosage time limitation: 0 - 240 minutes
Shutdown of the dosing pumps when chemical tank is empty

Features the INTELLIGENT DOSING SYSTEM: Automatic adjustment of dosing time limits to prevent the device from shutting down prematurely for safety reasons in most cases.

Use:
Intuition-based prompt menu with LC-display, 4 buttons, simple and user-friendly

Dosing Pump:
Peristaltic dosing pump 1,6 l/h, practically silent and resistant because of spring-supported rollers, optionally with 2.4 l/h pump

Scope of Delivery:

• Measuring, control and dosing unit DOS CL2 Deluxe S

• Temperature sensor

• pH- and Rx-probe with cable and plug SN6

• Buffer solutions pH 4, pH 7 and Rx 475 mV

• Probe housing (flow cell), hose connection nipples, 10 m test water tube and 2 closing valves

• Peristaltic pump 1.6 l/h, 2 bar max., for pH, injection valve (VITON) and dosage tube PTFE

• Socket for connecting the Chlorinator

• 2 Safety cans for chemical tanks 25 l / 30 l

• 2 Suction lances with level sensor (empty chemical tank)

Meiblue® pH / RX Deluxe S Wifi

Microprocessor-controlled measuring, dosing and control unit to control pH values and chlorine content using redox potential with Intelligent Dosing System (IDS).

• Wifi module

• XL-display: Display of all relevant parameters:
  - Currently measured water parameters
  - Through-flow volume of the measured water in l/h
  - Current pump performance in %
  - Display of all alarm states
  - Dosing direction

Measuring Range:
pH: 0 - 14, Redox 0 - 1000 mV
Display of the pool water temperature.

Control Characteristics:
Proportional, pH+ or pH- interchangeable (PID), 2 point control for disinfection

Safety Components:
Start-up time delay: 0 - 15 minutes
Adjustable dosage time limitation: 0 - 240 minutes
Shutdown of the dosing pumps when chemical tank is empty

Features the INTELLIGENT DOSING SYSTEM: Automatic adjustment of dosing time limits to prevent the device from shutting down prematurely for safety reasons in most cases.

Use:
Intuition-based prompt menu with LC-display, 4 buttons, simple and user-friendly

Dosing Pump:
Peristaltic dosing pump 1,6 l/h, practically silent and resistant because of spring-supported rollers, optionally with 2.4 l/h pumps

Scope of Delivery:

• Measuring, control and dosing unit DOS CL2 Deluxe Wifi

• Temperature sensor

• Through-flow volume control

• pH- and Rx-probe with cable and plug SN6

• Buffer solutions pH 4, pH 7 and Rx 475 mV

• Through-flow cell made from acrylic with hose connection nipples, 10 m test water tube and 2 closing valves

• Peristaltic pump 1.6 l/h, 2 bar max., for pH and disinfectant, injection valve (VITON) and dosage tube PTFE

• socket for connecting the chlorinator

• 1 Safety can for chemical tank 25 l / 30 l

• 1 Suction lance with level sensor (empty chemical tank)

Meiblue® Aqua Ozone Power

Have the best water quality with our cost-effective ozone generator for private pools.

Advantages:

• Improvement of water quality

• Extremely efficient against chlorine-resistant microorganisms

• Environmentally friendly

• Safely reduces the consumption of free chlorine

• Less skin and eye irritations

• Extremely low THM values

• Simple installation and minimal maintenance

• High-quality vacuum UV lights

• Easy exchange of UV lights

The ozone level significantly improves the chlorine-free water conditioning with active oxygen. The addition of chlorine can be reduced.

AQUA OZON POWER 50 – for pools up to 50 m³

AQUA OZON POWER 100 – for pools up to 100 m³

To prevent residual ozone from reaching the pool we recommend a special residual ozone destructor for degassing. Any contained residual ozone is discharged as exhaust air and is not transported into the swimming pool.
